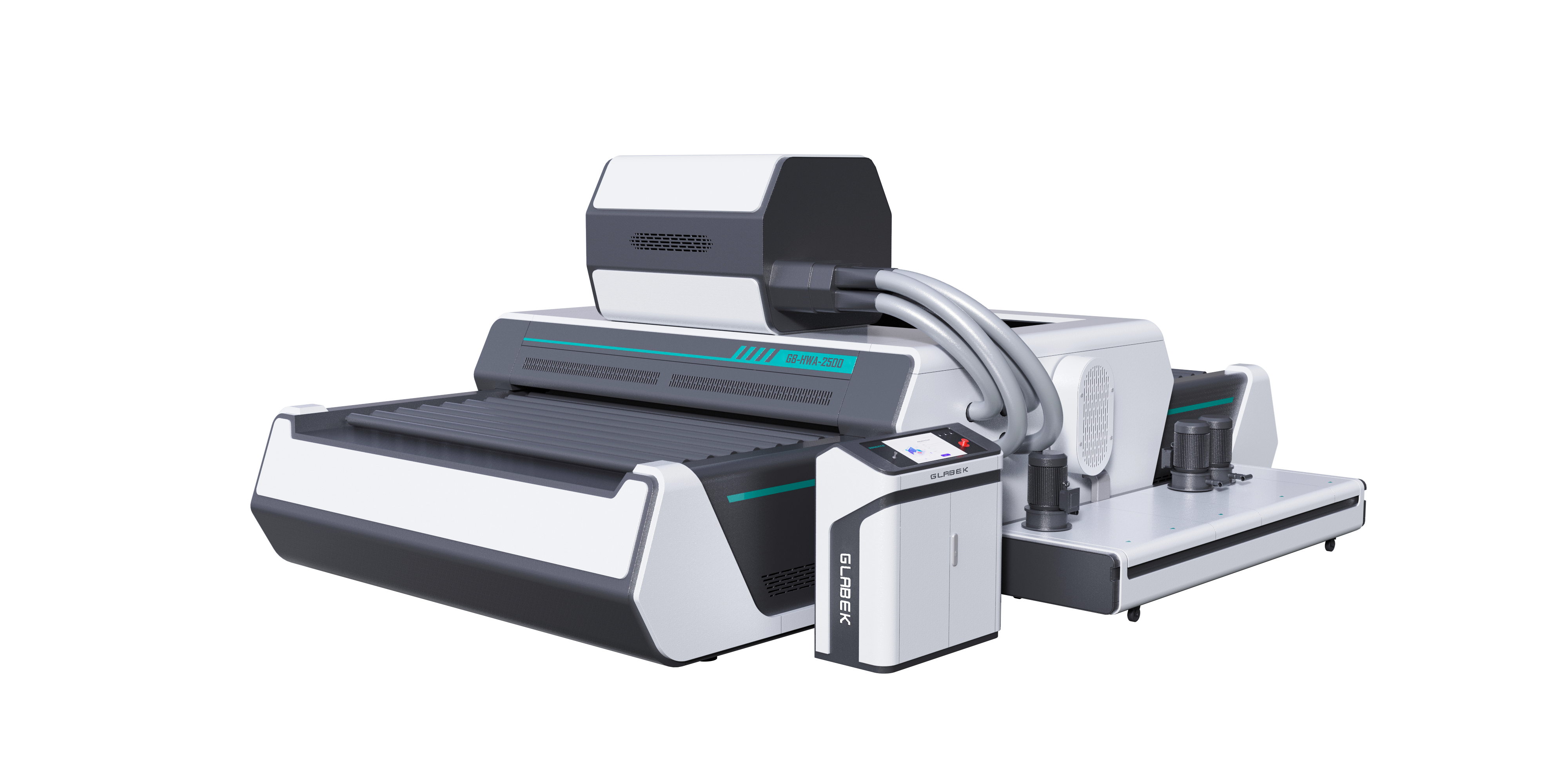

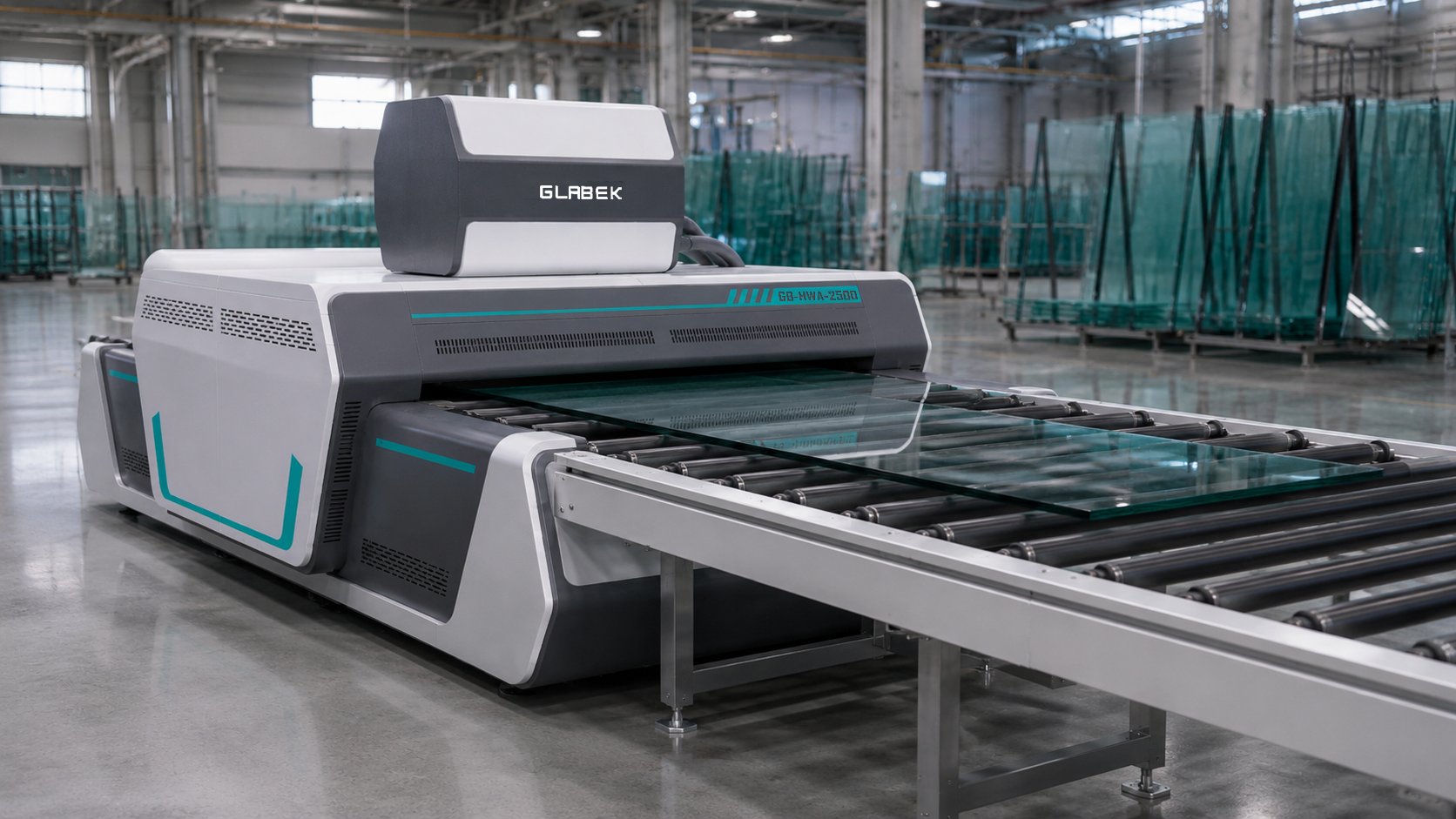

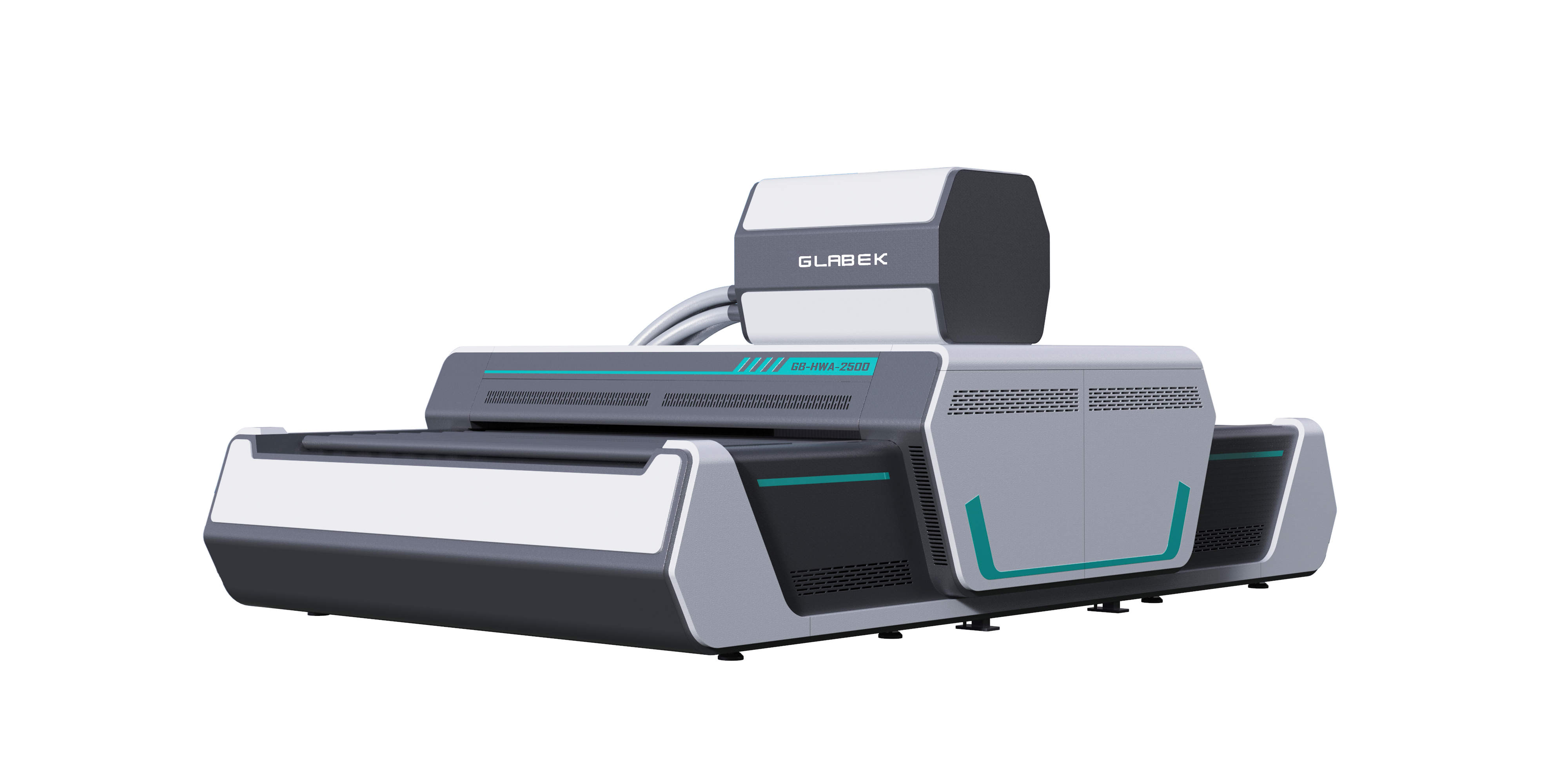

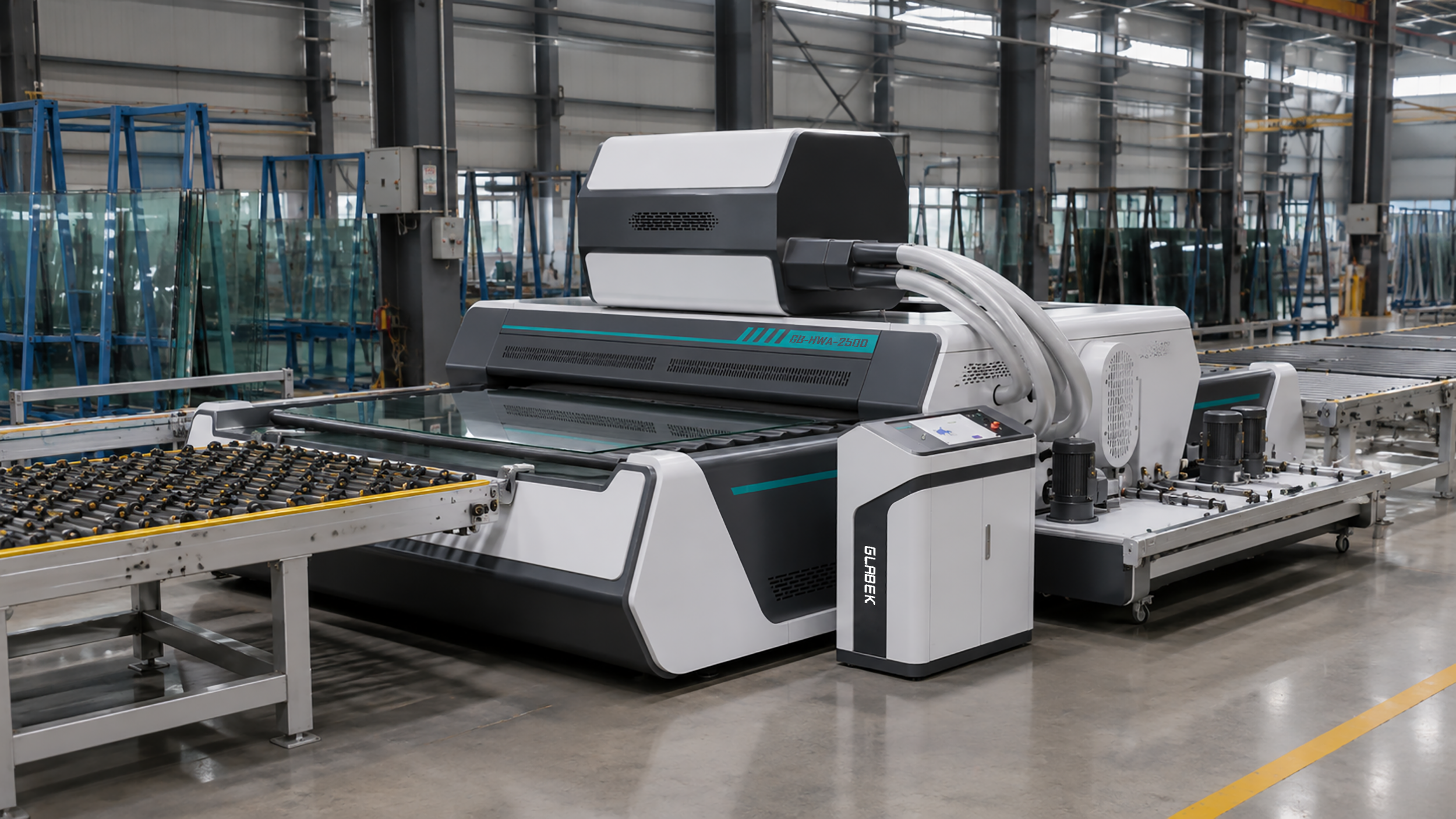

Glass Washing Machine
Horizontal glass washing and drying machine for LowE glass, coated glass, tempering lines and EVA/PVB laminating lines. Soft brush options, high-efficiency air knife drying, inverter-controlled blowers, brushes and conveyor, PLC + HMI control and intelligent energy-saving standby.
Intelligent Horizontal Glass Washing for LowE, Tempering and Laminating Processes
Horizontal glass washing and drying machine for LowE glass, coated glass, tempering lines and EVA/PVB laminating lines. Soft brush options, high-efficiency air knife drying, inverter-controlled blowers, brushes and conveyor, PLC + HMI control and intelligent energy-saving standby.
Designed for LowE, coated and flat glass processing
The machine can be configured for LowE glass, coated glass, tempered glass preparation, laminated glass preparation and general flat glass processing. Soft brush options and adjustable process settings help support careful washing of surface-sensitive glass products.
Designed for LowE, coated and flat glass processing
The machine can be configured for LowE glass, coated glass, tempered glass preparation, laminated glass preparation and general flat glass processing. Soft brush options and adjustable process settings help support careful washing of surface-sensitive glass products.
Ideal preparation before tempering and lamination
Clean and dry glass surfaces are essential before tempering, EVA/PVB lamination, printing, coating, inspection and packaging. The horizontal washing process supports stable surface preparation for downstream glass processing and helps maintain consistent production conditions.
Ideal preparation before tempering and lamination
Clean and dry glass surfaces are essential before tempering, EVA/PVB lamination, printing, coating, inspection and packaging. The horizontal washing process supports stable surface preparation for downstream glass processing and helps maintain consistent production conditions.
Variable frequency control for blower, brushes and conveyor
Blowers, brush rollers and conveyor transmission can be controlled by frequency inverters. This allows smooth speed adjustment, stable coordination between washing and drying sections, and better adaptation to different glass thicknesses, surface conditions and production speeds.
Variable frequency control for blower, brushes and conveyor
Blowers, brush rollers and conveyor transmission can be controlled by frequency inverters. This allows smooth speed adjustment, stable coordination between washing and drying sections, and better adaptation to different glass thicknesses, surface conditions and production speeds.
Core Technological Advantages
Select any card to read the full technical description.
Designed for LowE, coated and flat glass processing
The machine can be configured for LowE glass, coated glass, tempered glass preparation, laminated glass preparation and general flat glass processing.
Designed for LowE, coated and flat glass processing
The machine can be configured for LowE glass, coated glass, tempered glass preparation, laminated glass preparation and general flat glass processing. Soft brush options and adjustable process settings help support careful washing of surface-sensitive glass products.
Ideal preparation before tempering and lamination
Clean and dry glass surfaces are essential before tempering, EVA/PVB lamination, printing, coating, inspection and packaging.
Ideal preparation before tempering and lamination
Clean and dry glass surfaces are essential before tempering, EVA/PVB lamination, printing, coating, inspection and packaging. The horizontal washing process supports stable surface preparation for downstream glass processing and helps maintain consistent production conditions.
Variable frequency control for blower, brushes and conveyor
Blowers, brush rollers and conveyor transmission can be controlled by frequency inverters.
Variable frequency control for blower, brushes and conveyor
Blowers, brush rollers and conveyor transmission can be controlled by frequency inverters. This allows smooth speed adjustment, stable coordination between washing and drying sections, and better adaptation to different glass thicknesses, surface conditions and production speeds.
Intelligent glass detection and energy-saving operation
The machine can be equipped with intelligent glass detection.
Intelligent glass detection and energy-saving operation
The machine can be equipped with intelligent glass detection. When glass enters the drying section, the blower runs at normal working frequency; when no glass is detected, the blower switches to low-frequency standby. This supports lower energy consumption, reduced noise and less unnecessary mechanical wear during intermittent production.

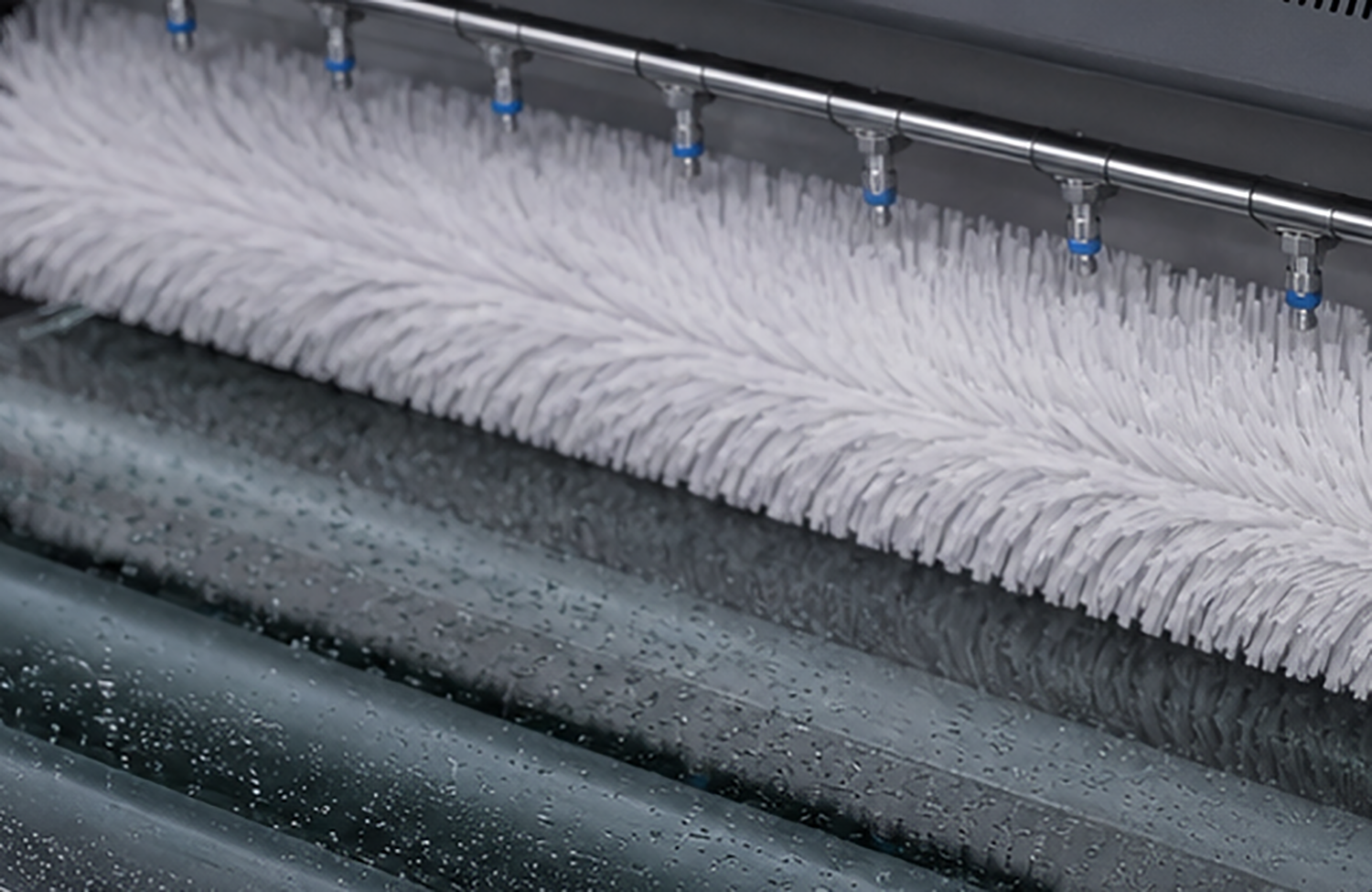

Multi-stage washing for professional surface preparation
The washing section can combine water spraying, brush washing and rinsing stages according to the required cleaning level.
Multi-stage washing for professional surface preparation
The washing section can combine water spraying, brush washing and rinsing stages according to the required cleaning level. Brush type, water system and washing configuration can be selected according to glass type, surface condition and process requirements.
Optional softened water system for improved washing stability
An optional softened water system can be configured to help reduce water hardness and support more stable washing performance.
Optional softened water system for improved washing stability
An optional softened water system can be configured to help reduce water hardness and support more stable washing performance. By improving water quality before the washing and rinsing stages, the system helps maintain cleaner glass surfaces, reduce mineral residue and support more consistent drying results, especially in areas with hard water conditions.
High-efficiency air knife drying
The drying section uses high-efficiency air knives and controlled airflow to remove surface water after washing.
High-efficiency air knife drying
The drying section uses high-efficiency air knives and controlled airflow to remove surface water after washing. Proper drying prepares the glass for tempering, lamination, printing, inspection, packaging or other downstream processing steps.
PLC + HMI intelligent control
PLC-programmed control and an operator-friendly HMI interface allow users to monitor conveyor speed, brush operation, blower frequency, washing status, dryin…
PLC + HMI intelligent control
PLC-programmed control and an operator-friendly HMI interface allow users to monitor conveyor speed, brush operation, blower frequency, washing status, drying status and alarm information clearly. The system supports stable daily operation with simple parameter setting and process monitoring.
Practical maintenance and long-term reliability
Accessible brushes, rollers, spray nozzles, water tanks, filters, air knives and electrical components help simplify daily inspection and maintenance.
Practical maintenance and long-term reliability
Accessible brushes, rollers, spray nozzles, water tanks, filters, air knives and electrical components help simplify daily inspection and maintenance. Liftable upper washing and drying sections, making the machine easier to inspect, clean and service.
Technical Performance Specs
Configuration-dependent values for professional production.
| Parameter | Specification |
|---|---|
| Product type | Horizontal glass washing and drying machine |
| Applicable glass | Flat glass, LowE glass, coated glass, glass before tempering, glass before EVA/PVB lamination and other processed glass, mirrors |
| Main process use | Washing and drying before tempering, lamination, printing, coating, inspection or packaging |
| Machine structure | Horizontal conveyor-type washing and drying system |
| Max. glass width | 1600 mm, 2000 mm, 2500 mm, 3300 mm or customized according to production requirements |
| Glass thickness | Typically 3–25 mm, depending on configuration |
| Washing system | Multi-stage spraying, brush washing and rinsing sections according to configuration |
| Brush system | Standard brushes & soft brushes for LowE / coated glass applications |
| Drying system | High-efficiency air knife drying system with blower frequency control |
| Drive control | Frequency inverter control for conveyor, brush rollers and blowers |
| Intelligent operation | Glass detection with automatic blower working / low-frequency standby mode |
| Conveyor speed | Adjustable speed according to glass thickness, surface condition and process requirement |
| Water system | Circulating water tank, filtration system and optional purified water / deionized water final rinse |
| Control system | PLC + HMI control system |
| Process monitoring | Conveyor status, brush status, blower frequency, washing status, drying status and alarm information available according to configuration |
| Maintenance design | Accessible brush section, spray nozzles, water tanks, filters, air knives and electrical components |
| Power supply | 3-phase, 400 V, 50 Hz; other voltages available on request |
| Customization | Machine width, brush quantity, brush material, water system, drying section, conveyor layout and control functions can be customized |
